The DPF pressure sensor plays a crucial role in keeping your diesel engine running clean and efficiently.

This sensor measures the difference in pressure before and after the diesel particulate filter.

The DPF is a filter that traps harmful soot and particulate matter from the exhaust gases keeping pollution levels lower.

The DPF pressure sensor checks how much back pressure is building up inside the filter.

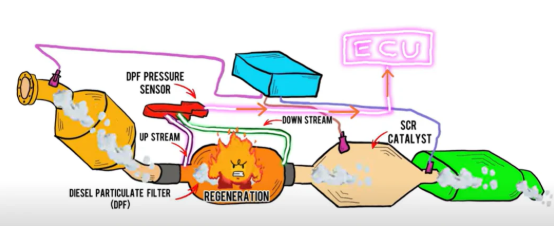

Now let's discuss how does a DPF pressure sensor work.The DPF pressure sensor has two tubes one connected before the DPF upstream and one after the DPF downstream.

These two points allow the sensor to measure the difference in pressure as exhaust gases pass through the DPF the sensor measures the pressure on both sides.

If the filter is clean the pressure difference will be small but as the filter becomes clogged the pressure before the DPF Upstream increases creating a larger difference between the two readings the sensor sends this pressure data to the engine control unit ECU.

If the pressure difference gets too high it means the DPF is getting clogged and the EC U will take action it might trigger a regeneration process where the filter Burns off the trapped soot to clean itself.

If the DPF becomes too clogged and the Regeneration process doesn't work the ECU will turn on a warning light on your dashboard alerting you to the issue.

In some cases it might reduce engine power to prevent further damage.

The DPF pressure sensor acts like a monitor telling the car when the filter is getting full and needs to be cleaned or replaced and that's how the DPF pressure sensor works.

It's an essential part of keeping your diesel engine and the environment healthy by monitoring the DPF regular maintenance and keeping an eye on the warning signs can help you avoid costly repairs.

Where are the DPF pressure sensors located?The DPF pressure sensors are usually found in the exhaust system near the diesel particulate filter DPF.

There are two connections one before the DPF and one after it these sensors measure the pressure difference between these two points to determine,if the filter is cloged imagine a water pipe with a filter inside.

If you measure the water pressure before and after the filter you can tell if the filter is blocking the water flow that's what the DPF pressure sensors do with exhaust gases.

If a DPF pressure sensor fails it can't measure the pressure difference correctly this can lead to several issues your engine's ECU might not know when the DPF is clogged so it won't trigger the Regeneration process to clean the filter.

You could see a warning light on your dashboard or the engine might go into limp mode to protect it self from damage in short a failed sensor means the system can't manage the DPF properly which can lead to Performance problems can you drive with a faulty DPF pressure sensor technically.

You can drive with a faulty DPF pressure sensor but it's not a good idea if the sensor isn't working you won't know if the DPF is clogged this could cause damage to the engine increase emissions or even Force the car into limb mode it's best to get the sensor fixed as soon as possible the cost to replace a diesel particulate filter DPF.
