Three-Way Catalytic Converter Carrier Length 650-1080mm Sealing Gasket Automobile Anti-Seismic Expansion Cotton Ceramic Fireproof Pad Insulation

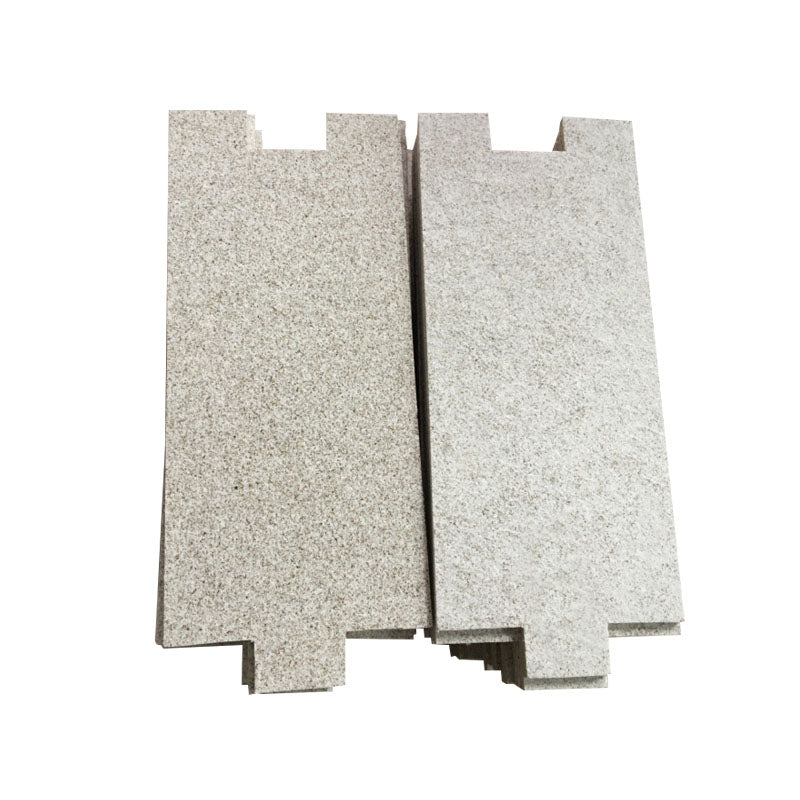

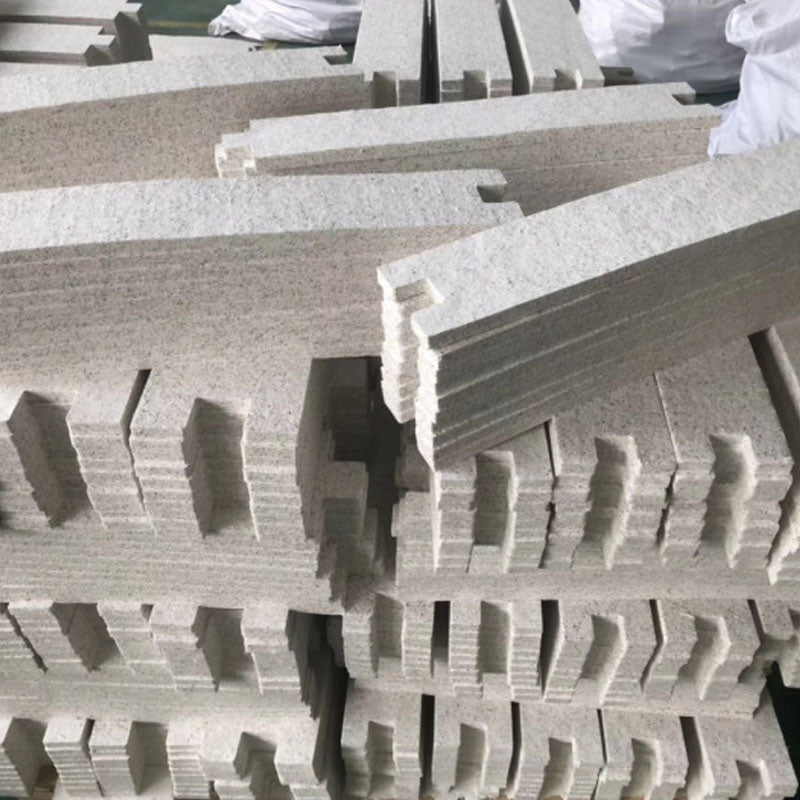

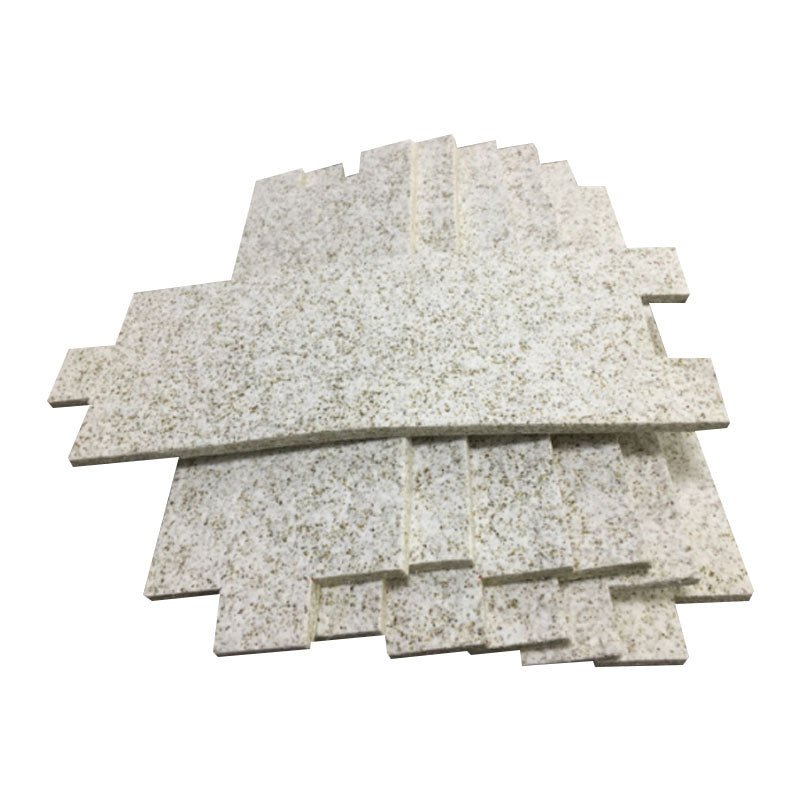

High-Temperature Vermiculite Expansion Mat
A high-performance thermal insulation gasket designed for automotive emission control systems
Product Overview
Our premium expansion...
High-Temperature Vermiculite Expansion Mat
A high-performance thermal insulation gasket designed for automotive emission control systems
Product Overview
Our premium expansion mat is specifically engineered for catalytic converter encapsulation in automotive exhaust systems. Featuring an advanced ceramic fiber and vermiculite composite formulation, it delivers exceptional thermal insulation, flexibility, and erosion resistance - making it the ideal solution for automotive aftertreatment systems and industrial high-temperature applications.
Key Advantages

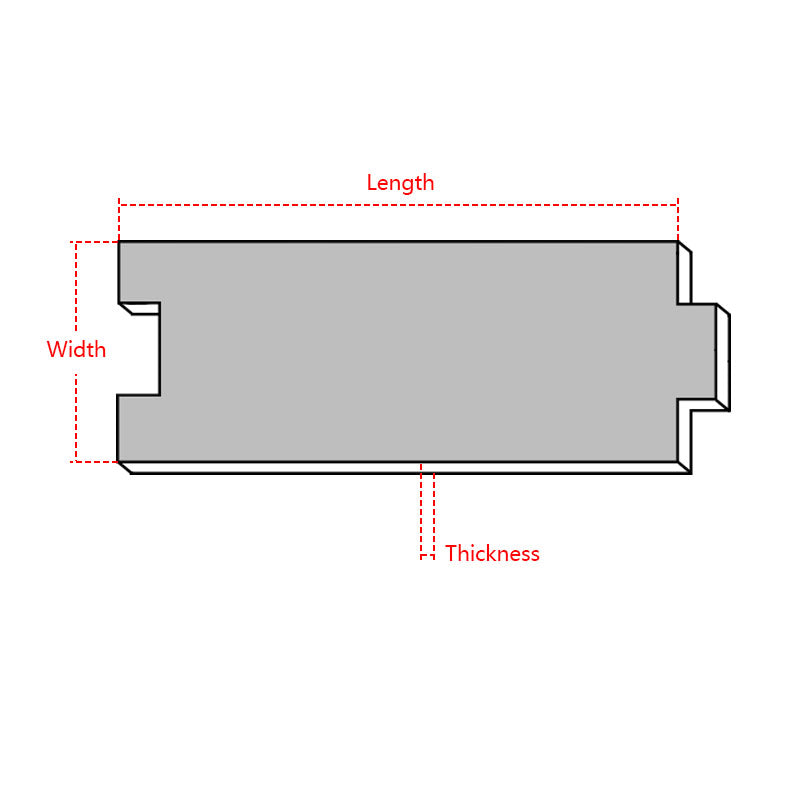

✅ Direct Manufacturer - Competitive pricing with quality assurance ✅ Custom Thickness - 2mm-12mm available (custom sizes upon request) ✅ Special Shapes - Support for custom dimensions
✅ Cost-Effective - Optimal balance between performance and price
Product Features
Outstanding Performance

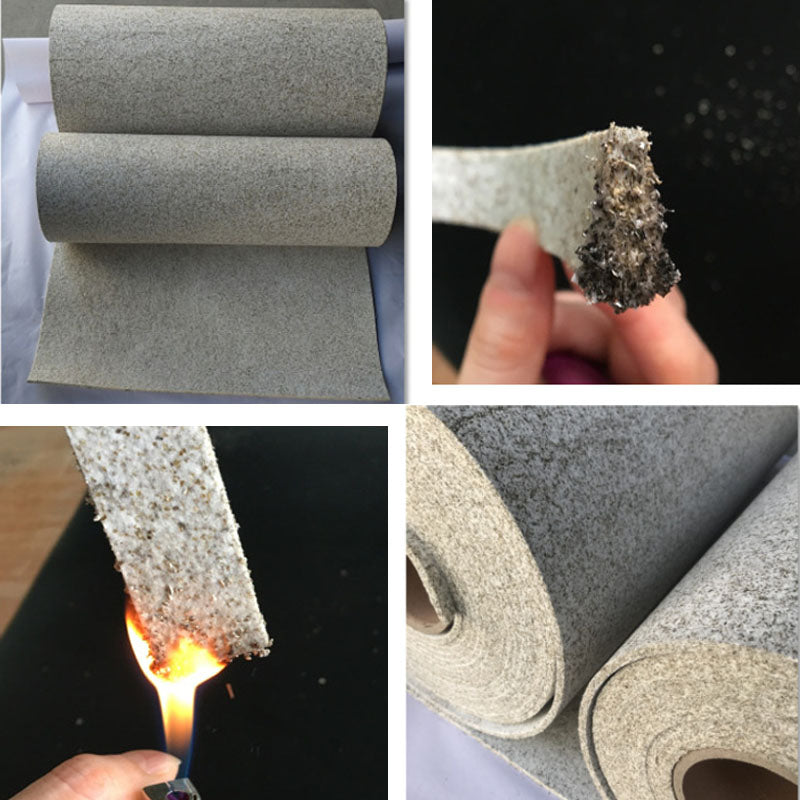

🔥 High-Temperature Stability: Classification temperature 1260°C, working temperature ≤1000°C 🛡️Erosion Resistance: Special fiber structure design withstands gas flow impact 🧱 Support Performance: Initial support at low temperature, enhanced support when vermiculite expands above 330°C 🧤Flexibility: Can bend nearly 180° without cracking 🧊 Thermal Insulation: Thermal conductivity ≥0.18W/m·k, effectively maintains catalytic temperature
Application Benefits
✨Sealing Performance: Prevents exhaust gas leakage ⚡Catalyst Protection: Maintains optimal working temperature range 💰Cost Efficiency: Extends converter lifespan, reduces maintenance costs 🌐Wide Applications: Automotive aftertreatment/industrial insulation/high-temperature expansion/fireproofing
Technical Specifications
Material Composition
Component Content Tolerance Ceramic Fiber 47% ±6.0% Vermiculite 47% ±5.0% Binder 7% ±5.0%
Physical Properties
Parameter Specification Tensile Strength ≥135kPa Thermal Conductivity ≥0.18W/m·k Classification Temperature 1260°C Working Temperature ≤1000°C
Working Principle
Installed between the ceramic substrate and metal housing in catalytic converters: At low temperatures: Ceramic fiber network provides initial support At high temperatures (>330°C): Vermiculite expansion enhances support force Continuous action: Maintains stable environment for catalytic conversion of CO, HC and NOx into harmless gases
Recommended Applications
Vehicles with degraded/damaged catalytic converters NOx emission vehicles requiring treatment Exhaust system repairs for failed emissions tests Industrial high-temperature equipment insulation Fireproofing applications General high-temperature expansion applications.
Our Commitment
📦 Direct Manufacturing - Quality guaranteed 🛠️ Custom Solutions - Tailored to your requirements ⏱️ Fast Delivery - Reliable lead times 📞 Technical Support - Expert assistance
Ready to Order or Need More Information?
Contact us today for customized solutions and competitive pricing!
We strive to make your shopping experience seamless with clear shipping and return guidelines. Please review our policies below.
Returns Policy
We offer a 14-day return policy from the date of delivery. To be eligible for a return:
- Items must be in original condition - unused, unworn, with tags and packaging
- Proof of purchase (receipt/invoice) is required
- Certain items are exempt from returns (see exceptions below)
To initiate a return, please contact us at svipcatcatalytics@gmail.com. We will provide a return shipping address and instructions. Items returned without prior authorization will not be accepted.
Non-Returnable Items:
- Incorrectly ordered car model sizes
- Products damaged due to illegal modifications or improper installation
- Catalysts with welding defects or installation-caused leaks
- Sale items and gift cards
For damaged, defective, or incorrect items, please contact us immediately upon receipt. Refunds are processed within 10 business days after we receive and inspect your return.
Shipping Policy
We utilize DDP air shipping (Delivered Duty Paid) which includes all customs clearance and import taxes:
- UK Delivery: 8-12 business days
- EU Delivery: 12-15 business days
- US Delivery: 15 business days
Tracking information becomes available once your package is transferred to our local courier partners (UPS/FEDEX/DHL). Please note:
- Initial air freight transit does not provide tracking
- Customs inspections may cause unexpected delays
- DDP means no additional fees will be charged upon delivery
For expedited shipping options or any shipping inquiries, please contact us at svipcatcatalytics@gmail.com.
The catalyst reacts based on exhaust temperature. For best performance, install within 50cm of the engine.
• Performance vehicles: High-flow 200cpsi
• Family cars: 400cpsi
• Always select according to your vehicle's original dimensions
• Family car: Less than 125HP/liter
• Performance vehicle: More than 125HP/liter
⚠ SAFETY OPERATION | ENGINE LINKAGE | BACKPRESSURE WARNING ⚠
I. DPF Handling Specifications
Handle with care
▶ Cordierite material is highly brittle - no impact or dropping!
▶ Always support from bottom, never lift by sensors or pipes.
No hammering
▶ Absolutely no hammering, prying or forced installation!
▶ Deformation/cracks will void warranty.
II. System Compatibility Check (Engine + Exhaust)
Mandatory backpressure inspection
▶ Must check before installation:
• Turbocharger oil leakage ✅
• Exhaust pipe dents/blockages (especially catalytic converter) 🔺
• EGR valve sticking or cooler carbon buildup ✅
▶ Abnormal backpressure causes:
→ DPF regeneration failure 🔺
→ Substrate melting/cracking 🔺
Engine health requirements
• Fix oil burning, injector leaks, cylinder misfires
• Installing DPF with existing issues = immediate clogging!
III. Installation Standards
Sealing & Compatibility
• Ensure gaskets are intact + sealing surfaces oil-free (leaks cause pressure fluctuations) 🔺
• Part number must 100% match vehicle/engine model
Sensor Protection
• Prevent wire strain and connector contamination
• Must calibrate differential pressure sensor with diagnostic tool (critical for backpressure monitoring) 🔺
Yes, we do.
1. Vanadium-based (V₂O₅-WO₃/TiO₂)
Active component: Vanadium pentoxide (V₂O₅) on titanium dioxide (TiO₂) with tungsten (WO₃) for thermal stability.
Temperature range:
300–400°C (medium-high), ideal for coal plants, industrial boilers.
Features:
• High NOₓ conversion (>90%)
• Low sulfur resistance (SO₂ oxidizes to SO₃)
• Toxic components require careful disposal
2. Iron-based (Fe-ZSM-5 etc.)
Active component: Iron oxides/ions on zeolite molecular sieves.
Temperature range:
250–450°C (medium-high), weaker at low temps.
Features:
• Better sulfur tolerance
• Non-toxic, easier disposal
• Requires higher temps for efficiency
3. Copper-based (Cu-SSZ-13, Cu-ZSM-5)
Active component: Copper ions on small-pore zeolites.
Temperature range:
200–500°C (wide), excels at 200–300°C.
Features:
• Excellent low-temperature performance
• High resistance to sulfur/water poisoning
• Stable up to 550°C
g/cft.Pt:
g = grams (mass)
cft = cubic feet (1 cft ≈ 28.3 liters)
Pt = Platinum (active component in DOCs)
Definition: Platinum loading per cubic foot of catalyst substrate.
Examples:
• 10g/cft.Pt = 10 grams platinum per cubic foot
• 20g/cft.Pt = higher platinum loading
10g/cft.Pt:
For lower emissions standards (e.g., Euro V) or cost-sensitive applications.
20g/cft.Pt:
For strict standards (Euro VI), heavy-duty vehicles, or extended lifespan requirements.
SDPF (SCR-coated Diesel Particulate Filter) integrates SCR (Selective Catalytic Reduction) and DPF functions into one unit, primarily used to meet strict emissions standards like Euro 6.
We provide multiple options:
• Express: FEDEX, DHL, UPS, TNT (door-to-door)
• DDP: Includes customs clearance + duties + delivery
• Sea/Air freight: To airport/port (customer pickup)
• Small parcel: Cainiao, YunExpress, USPS etc.
